This is Online Help for DSPLinks.

Pull down item, like Play Wave, Save Wave, Save Text and Save Coefficients, are disabled or could not be found.

When you do something related to WAVOUT, like Play Wave or Save Wave, you should have its monitor window in the foreground. In the figure above, CHBLPF(U_4, Chebychev Low Pass Filter) is in the foreground. Therefore, only Save Coefficients is enabled.

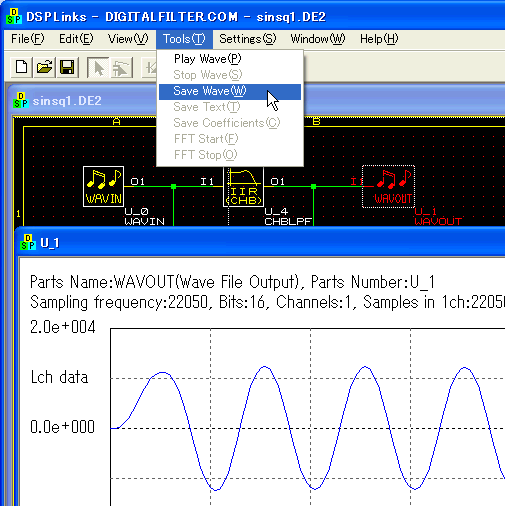

Please click on U_1(monitor window of WAVOUT) and check "Tools" on the menu. You can see Save Wave enabled.

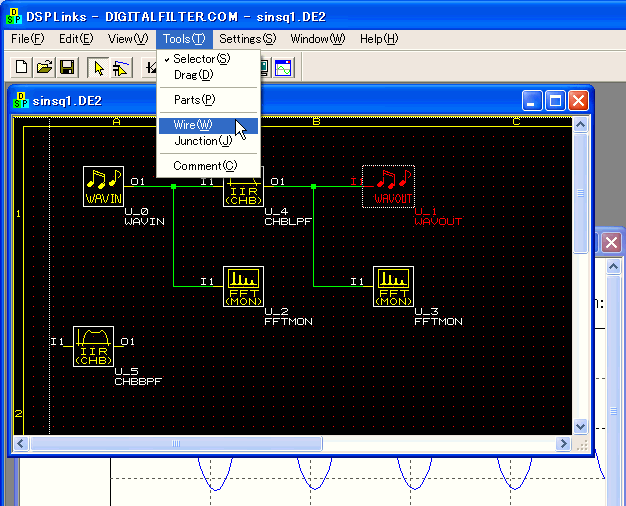

The same thing happens for the schematic window. You should have it in the foreground when you modify the schematic.
