This is Online Help for DSPLinks.

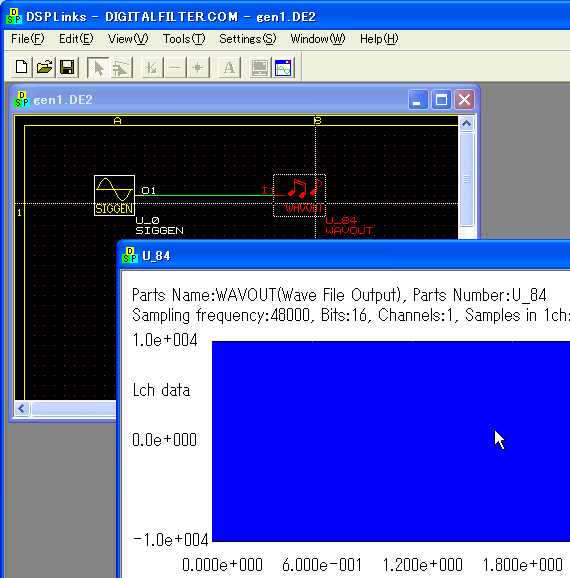

Monitor Window is all painted blue.

This occurs when you place new components, like WAVOUT or TXTOUT. These shows the signal fully (both X and Y axis) in the monitor window with default settings.

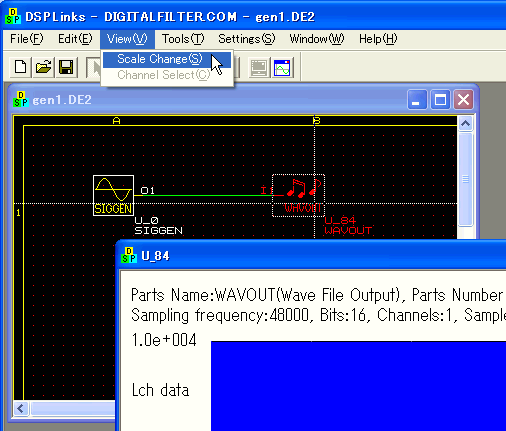

In this case, choose "View" -> "Scale Change" in the menu.

Set a small value in "X Range". In the following figure, "1e-2" is set. This is the same value as "0.01".

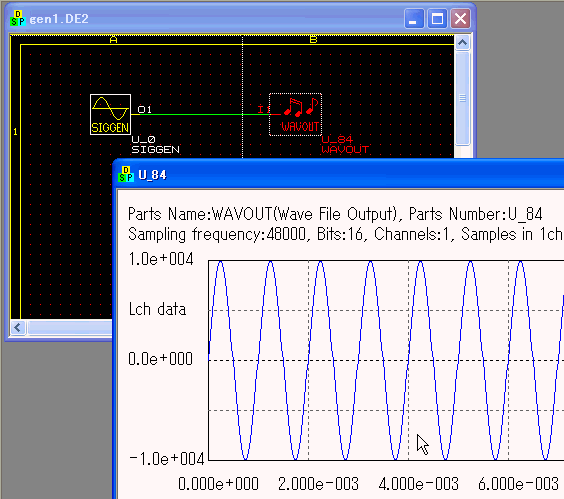

1kHz sine wave is observed in this example.
